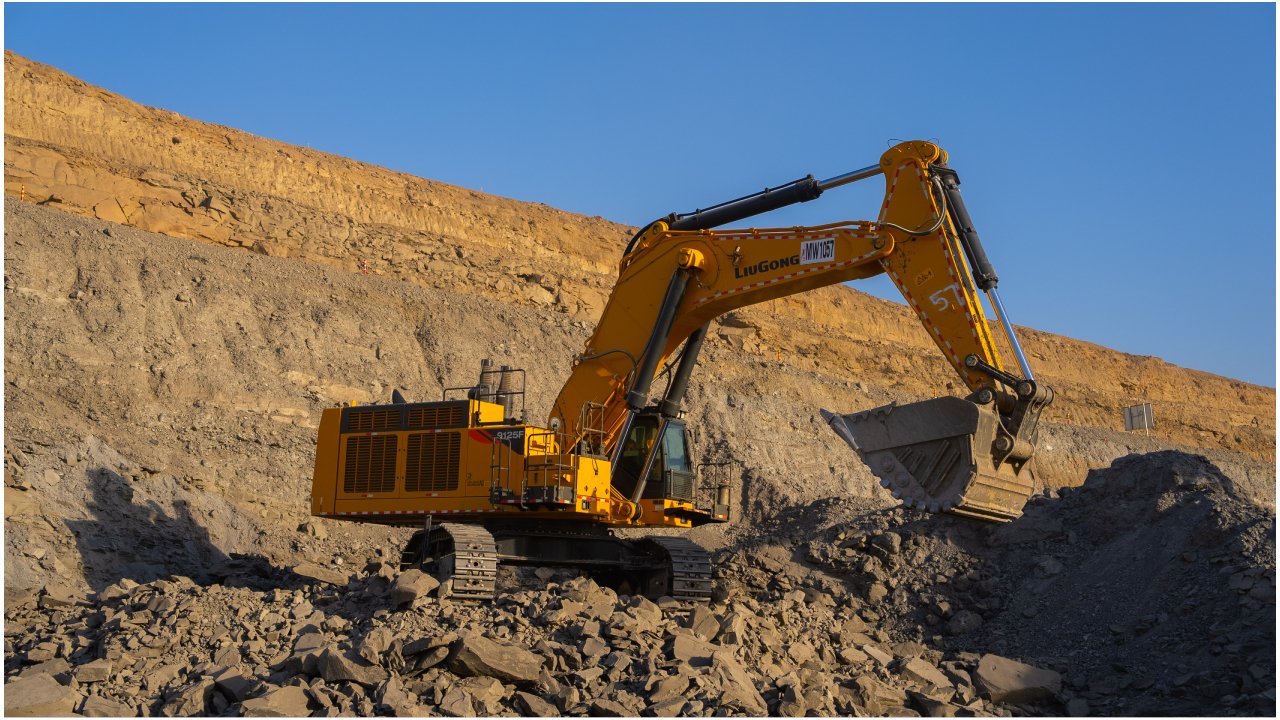

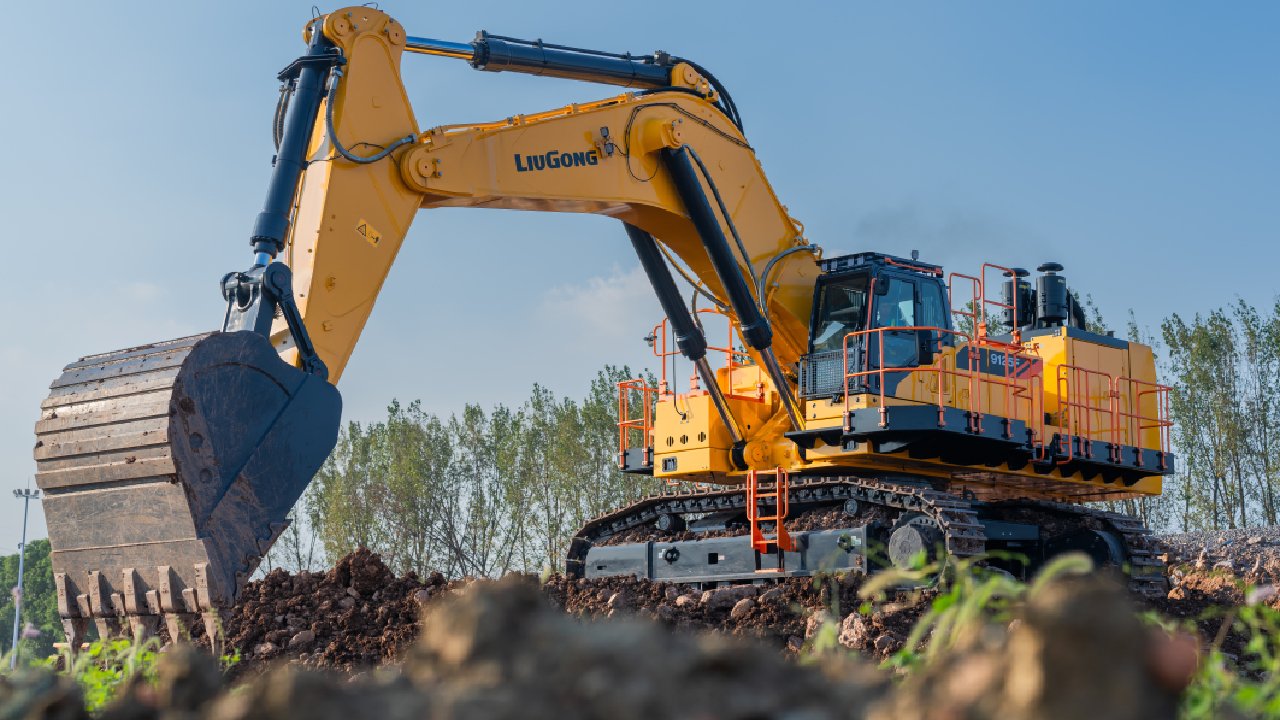

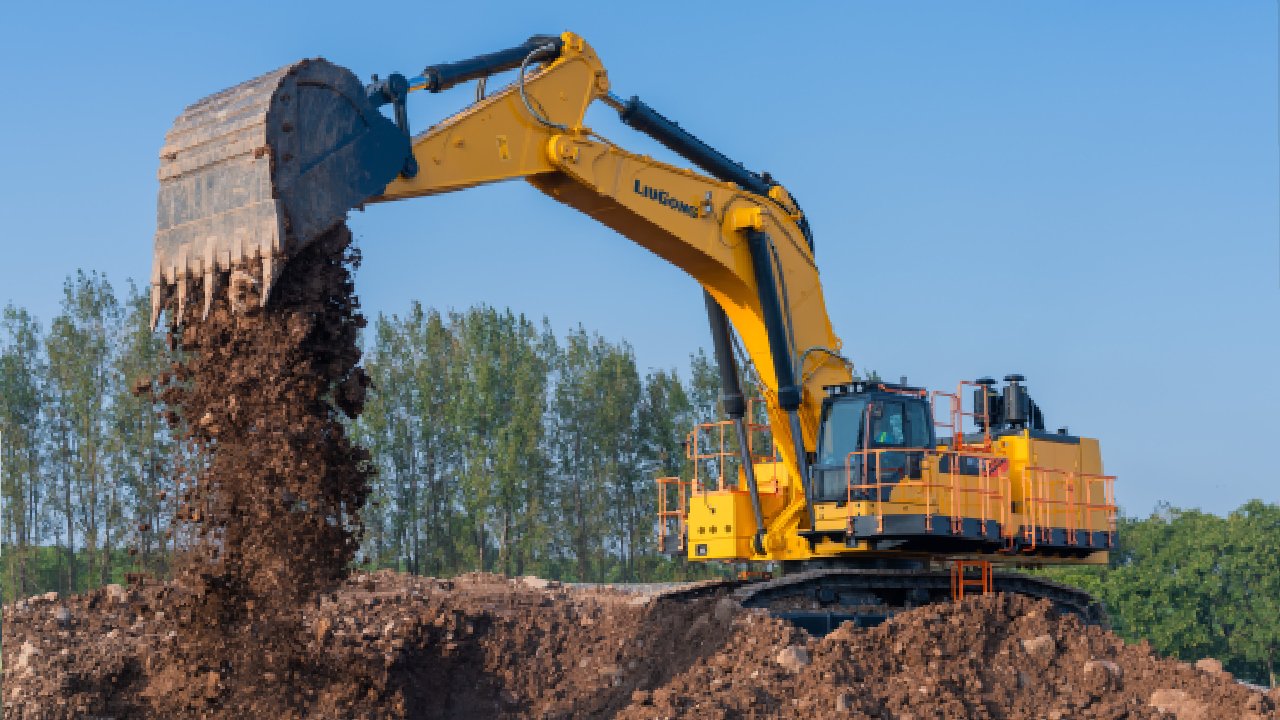

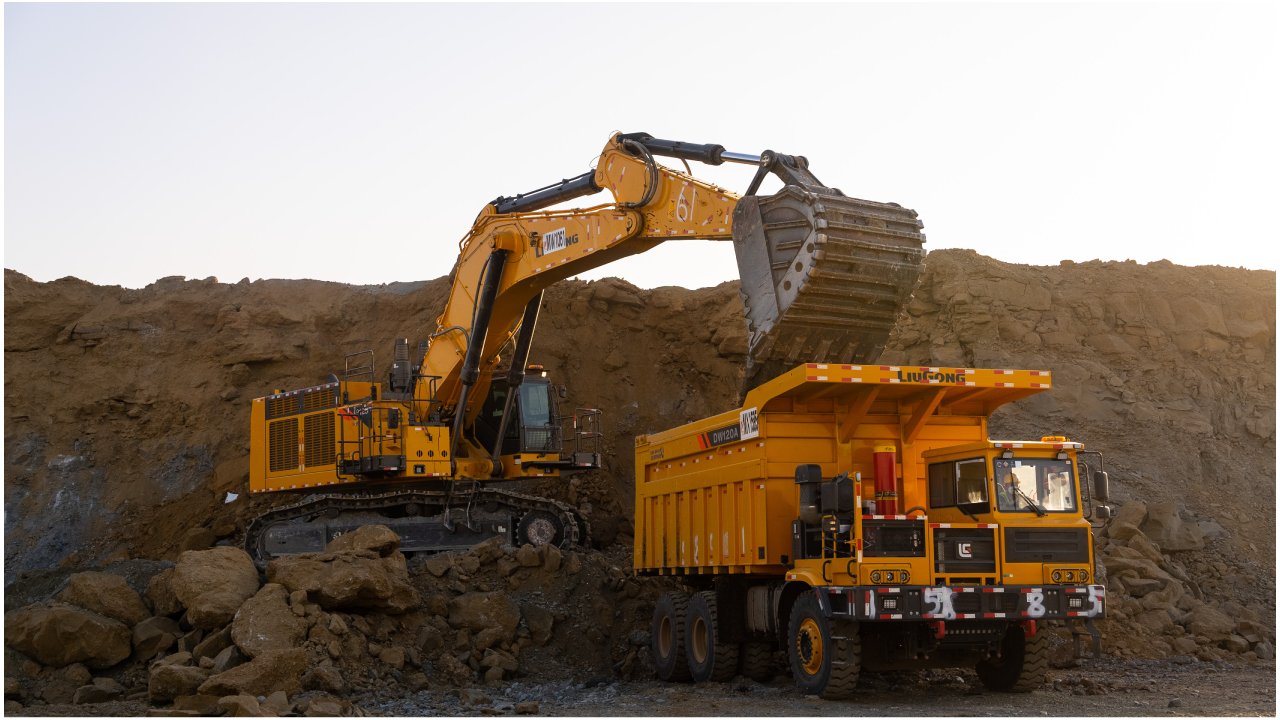

9125F
FEATURES
WE GIVE YOU THE ULTIMATE IN EASY OPERATION AND CONTROL
Our IPC (Intelligent Power Control) system makes it easy for even the most inexperience operator to perform like a pro. By perfectly matching the engine, electrical and hydraulic systems to the task, the 9125F ensures that maximum performance, fuel economy and control are consistently achieved. With six working modes to choose from, you can perfectly match the machine to the task at the push of a button.
A TEAM YOU CAN RELY ON
We’ve teamed up with world-class component suppliers such as Kawasaki and Cummins to only use deliver the highest uptime and service life. For extra peace of mind our components have high availability, so securing replacement parts is quick and easy no matter where you are working.
EASY ACCESS MAINTENANCE
Cummins QSK23 engine features large displacement, high power, and large power reserve coefficient, making it more suitable for heavy-duty applications.
Better controllability with large-diameter main control valve and an electric proportional control valve.
Accurate control leads to lower fuel consumption. Powered by Cummins QSK23 engine and core parts purchased globally, 9125F has world-class quality. A standard full electronically controlled positive flow system allows for high operating efficiency and lower fuel consumption compared with machines of same size class
SPECIFICATIONS
Base
| Operating Weight | 122,000 kg |
| Rated Power | 567 kW@ 1,800 rpm |
| Std. Bucket capacity | 8.0 m³ |
| Travel speed(High)t | 3.5 km/h |
| Travel speed(Low)t | 2.6 km/h |
| Maximum swing speed | 6.2 rpm |
| Arm Digging Force (ISO) | 491 kN |
| Bucket Digging Force (ISO) | 610 kN |
| Shipping Length | 14755 mm |
| Shipping Width | 5743mm |
| Shipping Height | 6364 mm |
| Track shoe width (std) | 700 mm |
| Boom | 7550 mm |
| Arm | 3400 mm |
| Max. Digging Reach | 13997 mm |
| Max. Digging Reach on Ground | 13628 mm |
| Max. Digging Depth | 8112 mm |
| Max. Vertical Wall Digging Depth | 5832 mm |
| Max. Cutting Height | 12585 mm |
| Max. Dumping Height | 8050 mm |
| Min. Front Swing Radius | 6489 mm |
| Model | Cummins QSK23 |
| Emission Regulation | Stage IIIA / CN III |
| Main Pump Total Flow | 2040 L/min |
| Relief Pressure, main | 37 MPa |
