4260D
FEATURES

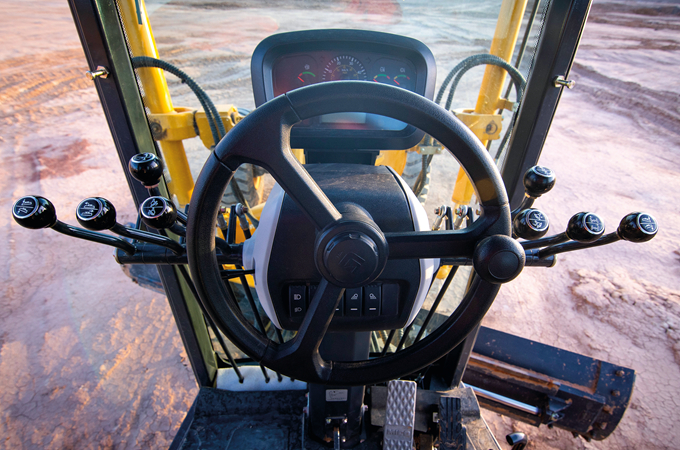

HIGHEST VISIBILITY AND COMFORT
Sharing the same design DNA as our Red Dot Award winning design, the 4260D delivers unbeatable visibility allowing operators to work more safely and productively. With improved damping cab mounts, the fully pressurized cab offers a low vibration, low noise environment. Add to this a fully adjustable suspension seat, ergonomic controls and sophisticated temperature control and you have the perfect environment.
EXCEPTIONAL MOBILITY
Whatever the terrain the 4260D moves with ease. Complete with a world-class Meritor wet axel with a “no spin” differential lock as standard, the operator can enjoy unparalleled ride quality and mobility. We’ve made it easy to turn on tight job sites too, by reducing the turning radius down to 7.2m, one of the narrowest in the industry. In addition, the balance box enables increased mobility for the 4 rear wheels allowing them to swing up and down by +/-15°.
PERFORMANCE AND ECONOMY
Powered by a super-efficient Cummings Tier 2 engine and 6-speed powershift transmission, the 4260D delivers precise and sensitive power control with maximum fuel economy. Engine performance and fuel economy are further improved thanks to the Kleanaire air pre-cleaner which neutralizes the effects of the toughest, dustiest conditions to boost engine performance, fuel economy and uptime.
SPECIFICATIONS
Base
| Operating Weight | 20,500 kg |
| Drawbar pull | 112 kN |
Dimension
| Blade Width | 4,270 mm |
| Overall Length | 9,090 mm |
Engine
| Model | Cummins 6LTAA9.3 |
| Emission Regulation | Tier 2 / Stage II |
| Rated Power | 194 kW (260 hp / 264 ps) @ 2,200 rpm |
Transmission
| Maximum Travel Speed, Forward | 44 km/h |
| Maximum Travel Speed, Reverse | 26.2 km/h |
