6516E
FEATURES
SAFETY FIRST
Safety is a LiuGong priority and the 6516E uses our enhanced three-stage braking system. This safe and braking system utilizes hydraulics, oil cut-off and wheel side oil braking to protect the operator, site works and members of the public from accidents.

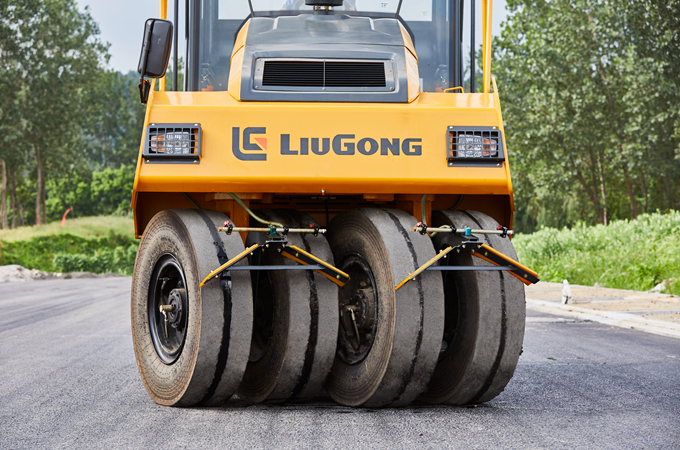

PATENTED COMPACTION TECHNOLOGIES
LiuGong leads the way in compaction innovation. Our patented Tire suspension system maximises ground contact for each wheel delivering optimum compaction, improved stability and greater safety by preventing the roller from tilting over. LiuGong’s patented steering system also contributes to greater compaction performance by utilizing a double steering mechanism to minimize damage to the compacted surface during steering manoeuvres.

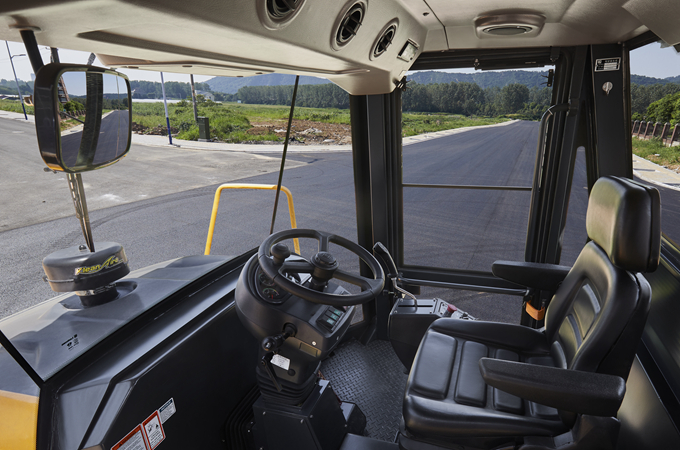

MORE FOR THE OPERATOR
As you would expect the operator’s environment has been designed to make life safe, easy and comfortable. Controls are clearly visible and within easy reach and a comfortable, rotatable sear allows 360° views from the cab.
SPECIFICATIONS
Base
| Max. Operating Mass | 16,000 kg |
| Min. Operating Mass | 11,000 kg |
| Single Tire Load | 1,778 kg |
| Overlapping of Front & Rear Tire | 45 mm |
Compaction
| Vibration Frequency | 4,800 mm |
| Centrifugal Force | 2,310 mm |
| Drum Diameter | 3,270 mm |
Drive
| Working Speed | 0-7 km/h |
| Compacting Width | 2,250 mm |
| Theoretical Gradeability | 20% |
| Tire Type | 11.00-20-18PR |
| Tire Numbers | Front 4 Rear 5 |
Engine
| Model | Cummins 4BTAA3.9-C130 |
| Emission Regulation | Stage II |
| Rated Power | 97 kW (130 hp / 132 ps) @ 2,500 |
