6611E
FEATURES
WORKS HARDER FOR LONGER

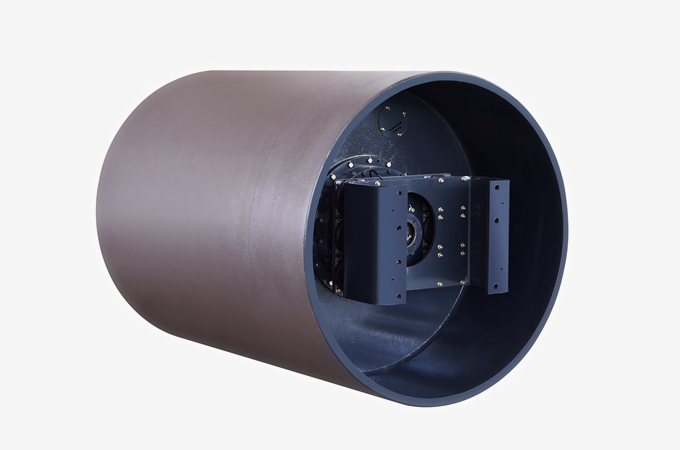

Our 6611E is built to last. Its flexible and non-impact technology extends the vibratory bearing’s working life to beyond 10,000 hours increasing productivity and reducing part wear. In addition, the Exciter has been designed to last a lifetime and is virtually maintenance free. Requiring only 5L of lubrication oil this smart component can save on average $200 per year. Patented cooling technology inside the drum also helps prolong component life reducing maintenance and running costs.
INDUSTRY LEADING COMPACTION
When it comes to delivering industry leading compaction you can trust the 6611E. With a 1,555mm diameter drum, dual frequency, and double amplitude vibratory mode, the 6611E can generate an impressive 300kN of centrifugal compaction force to create the perfect base.
PERFECT COMPACTION – FEWER PASSES
When time is precious you need a compacter that will get the job done fast. With a larger diameter drum, combined with amplitude consistency and uniformity, we ensure that the optimum compaction force is delivered with fewer passes required, helping get the job done faster and improving productivity.
SPECIFICATIONS
Base
| Operating Mass | 11,350 kg |
Compaction
| Vibration Frequency | 30/33 Hz |
| Centrifugal Force | 300/190 kN |
| Drum Diameter | 1,555 mm |
Dimensions
| Overall Length | 6,000 mm |
| Overall Width | 2,280 mm |
| Overall Height | 3,180 mm |
Drive
| Theoretical Gradeability | 45% |
Engine
| Model | Cummins 4BTAA3.9-C125 |
| Emission Regulation | Stage II |
| Rated Power | 93 kW (125 hp / 126 ps) @ 2,200 rpm |
