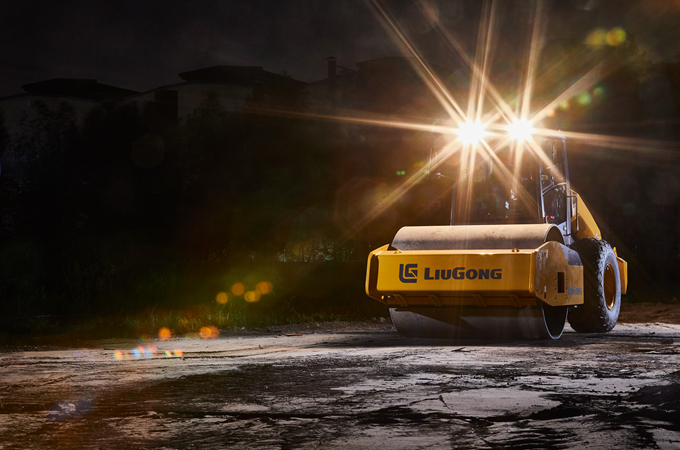

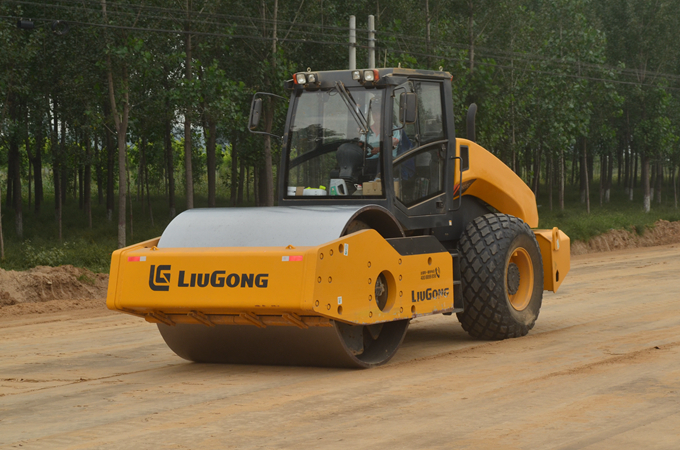

6622E
FEATURES
WORKS HARDER FOR LONGER
Our 6622E is built to last. Its flexible and non-impact technology extends the vibratory bearing’s working life to beyond 10,000 hours increasing productivity and reducing part wear. In addition, the Exciter has been designed to last a lifetime and is virtually maintenance free. Requiring only 5L of lubrication oil this smart component can save on average $200 per year. Patented cooling technology inside the drum also helps prolong component life reducing maintenance and running costs.
INDUSTRY LEADING COMPACTION
When it comes to delivering industry leading compaction you can trust the 6622E. With a 1,600mm diameter drum, dual frequency, and double amplitude vibratory mode, the 6622E can generate a massive 400kN centrifugal compaction force to create the perfect base.
PERFECT COMPACTION – FEWER PASSES
When time is precious you need a compacter that will get the job done fast. With a larger diameter drum, combined with amplitude consistency and uniformity, we ensure that the optimum compaction force is delivered with fewer passes required, helping get the job done faster and improving productivity.
SPECIFICATIONS
Base
| Operating Mass | 22,000 kg |
| Mass On Vibrating Drumt | 13,800 kg |
| Mass On Drive Axle | 8,200 kg |
| Front Drum Static Linear Load | 635 N/cm |
Compaction
| Vibration Frequency | 28/33 Hz |
| Centrifugal Force | 420/290 kN |
| Drum Diameter | 1,600 mm |
Dimensions
| Overall Length | 6,450 mm |
| Overall Width | 2,400 mm |
| Overall Height | 3,050 mm |
Drive
| Theoretical Gradeability | 45% |
| 1st Maximum Speed, fwd | 4 km/h |
| 2nd Maximum Speed, fwd | 5.5 km/h |
| 3rd Maximum Speed, fwd | 6.5 km/h |
| 4th Maximum Speed, fwd | 10.5 km/h |
Engine
| Model | Shangchai SC8D |
| Emission Regulation | Stage II / Stage III |
| Rated Power | 140 kW (190 hp) @ 2200 rpm |
