8128H
FEATURES

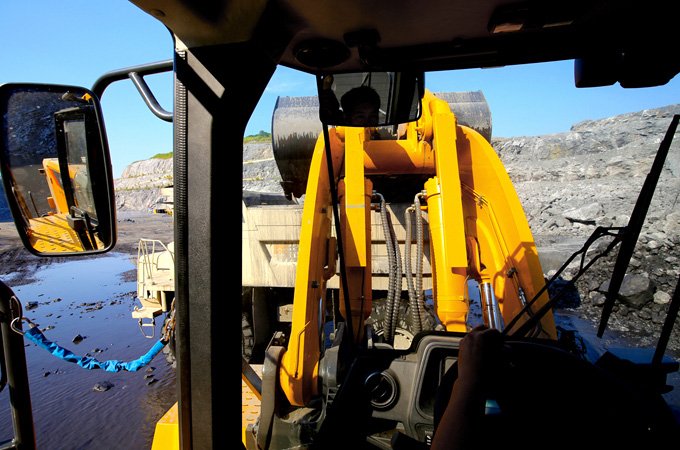

SAFE AND EASY FOR THE OPERATOR
Our spacious, fully pressurized ROPS/FOPS cab provides a clean, quiet, and safe environment, but we go further. With excellent visibility, a fully adjustable seat and a multi-functional joystick for fingertip control we make the toughest jobs easy for the operator.
RELIABILITY AND DURABILITY YOU CAN COUNT ON
We’ve made the 8128H tough from the ground up. To complement our reinforced chassis, our heavy-duty wet type brake axel and braking system combine to give operators extra confidence in the toughest conditions. We’ve made it easy to reduce downtime and parts costs too, with our high-capacity reinforced rock bucket. With thickened plates and teeth this bucket will work harder for longer in demanding mining applications.

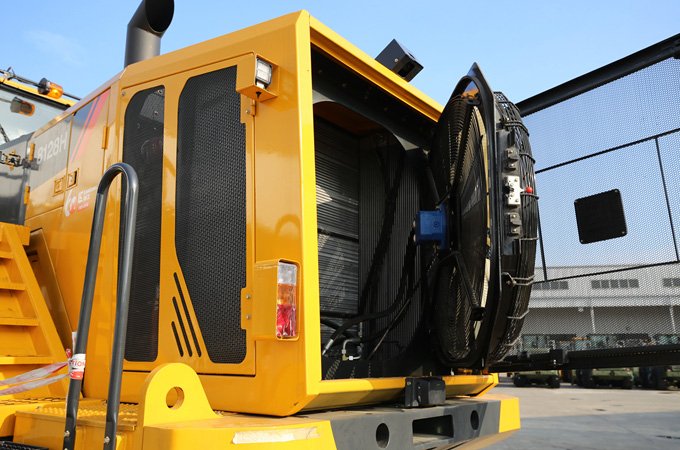

INTELLIGENT COOLING FOR GREATER ECONOMY
The 8128H comes complete with a smart, reversible hydraulic fan which maintains the optimum cooling speed to match the working conditions. This variable speed technology is a smart way to reduce fuel consumption. In addition, the clever design makes it easy to remove dirt and contaminants reducing maintenance and downtime.
SPECIFICATIONS
Base
| Operating Weight | 52,100 kg |
| Bucket Capacity | 7.0 m³ |
| Maximum Gross Power-SAE J1995 / ISO 14396 | 418 kW (562 hp / 570 ps) @ 1,600 rpm |
| Maximum Net Power-SAE J1349 / ISO 9249 | 398 kW (534 hp / 541 ps) @ 1,600 rpm |
| Rated Load | 12,000 kg |
Dimensions
| Length with Bucket Down | 11,847 mm |
| Width over Tires | 3,590 mm |
| Cab Height | 4,195 mm |
Engine
| Model | Cummins QSK19 |
| Emissions | EPA Tier 3 / EU Stage IIIA |
Performance
| Total Cycle Time | 14.58 s |
| Tipping Load-full Turn | 31,200 kg |
| Bucket Breakout Force | 432 kN |
| Dump Clearance, Full Height Discharge | 4,094 mm |
| Dump Reach, Full Height Discharge | 1,861 mm |

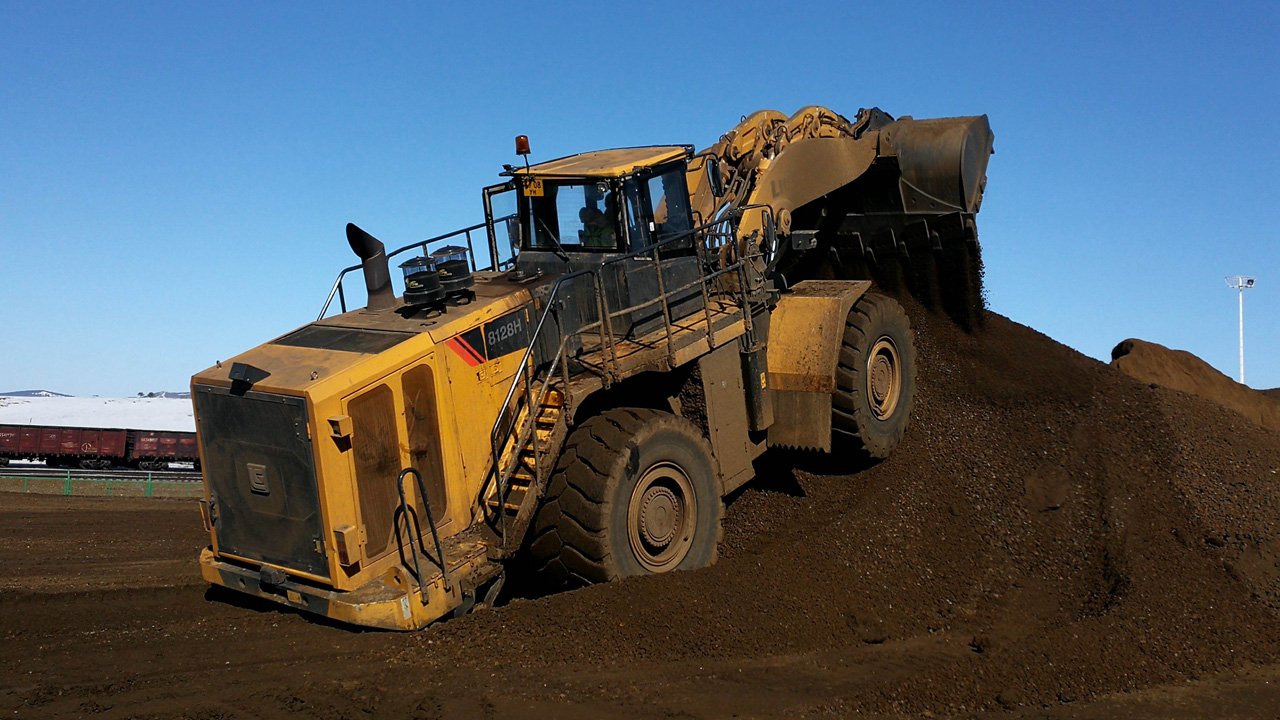

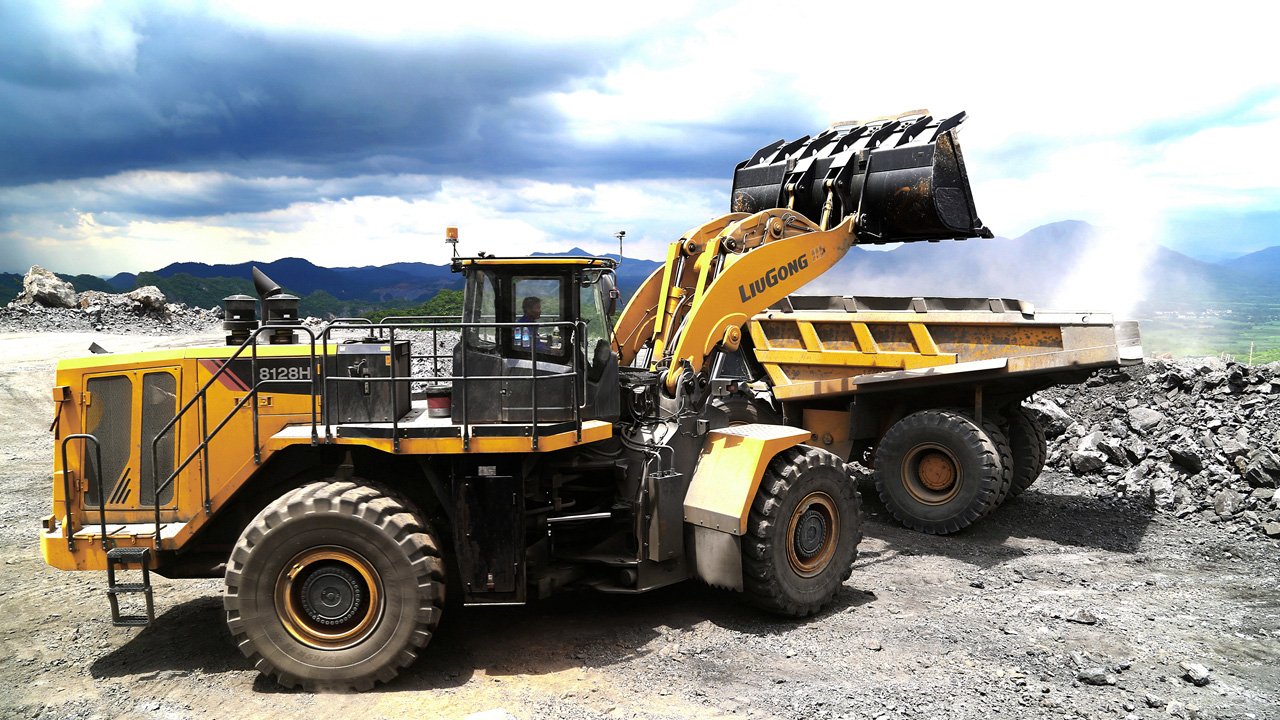

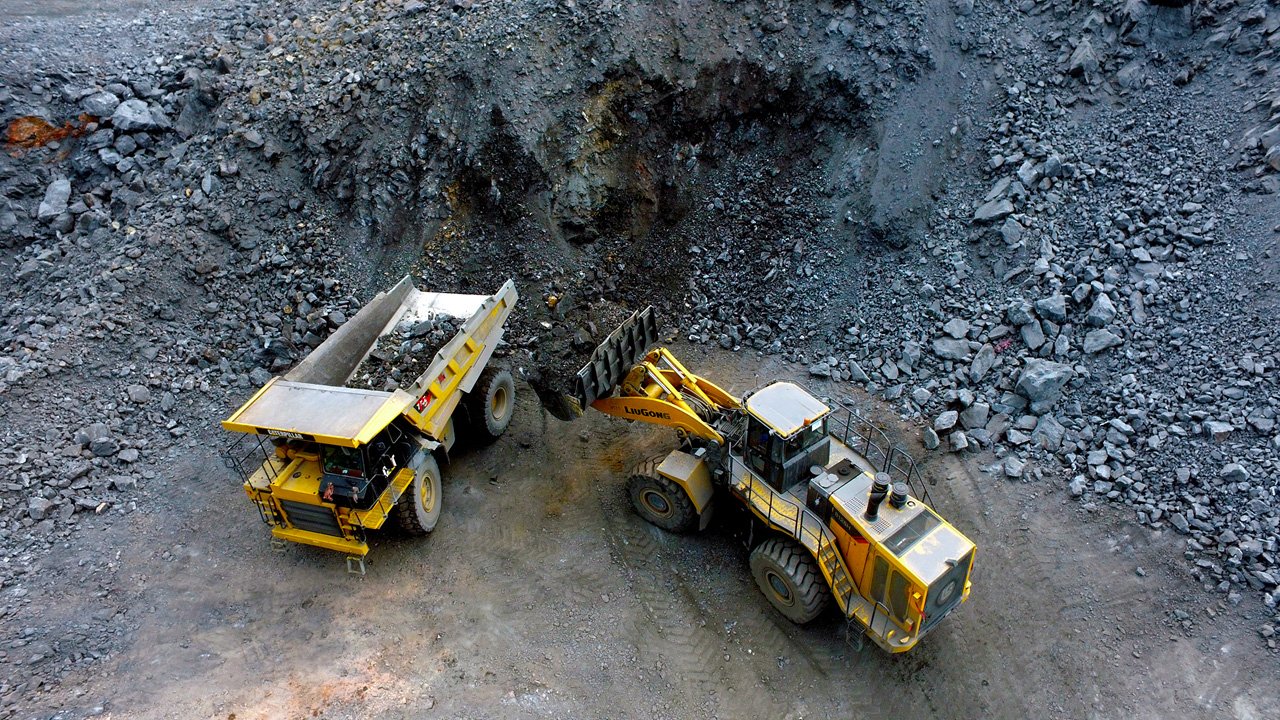

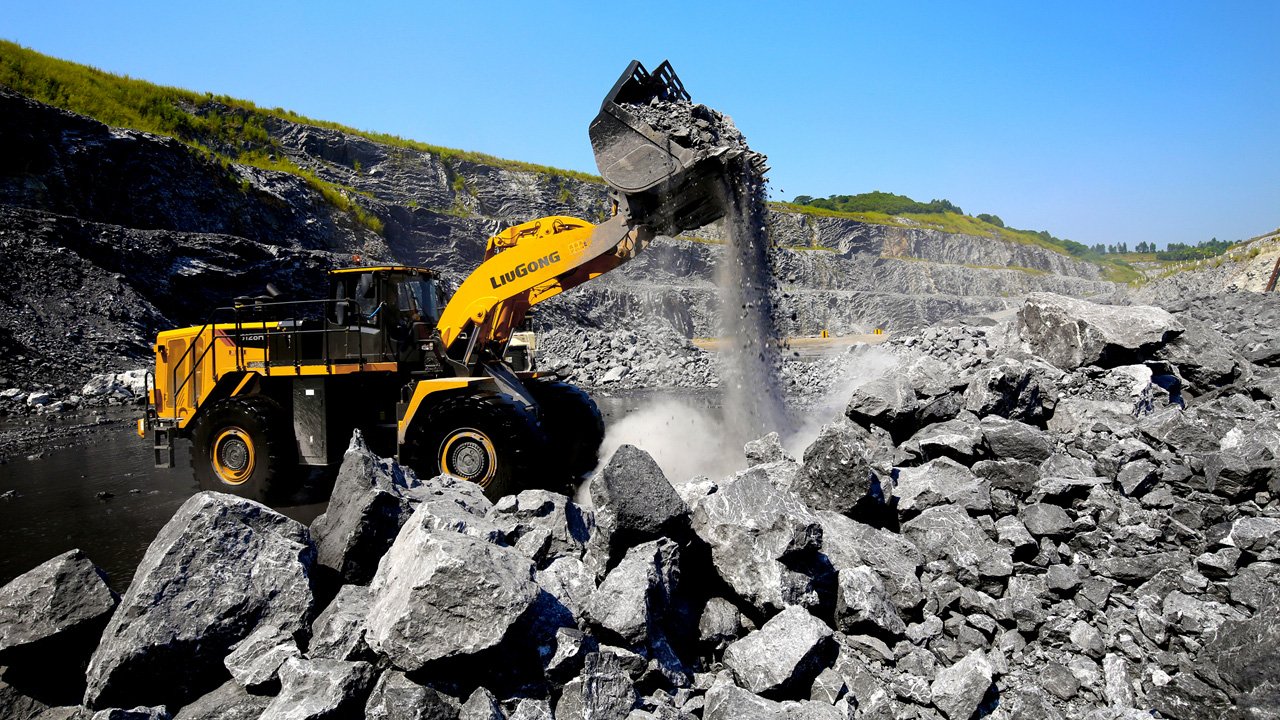

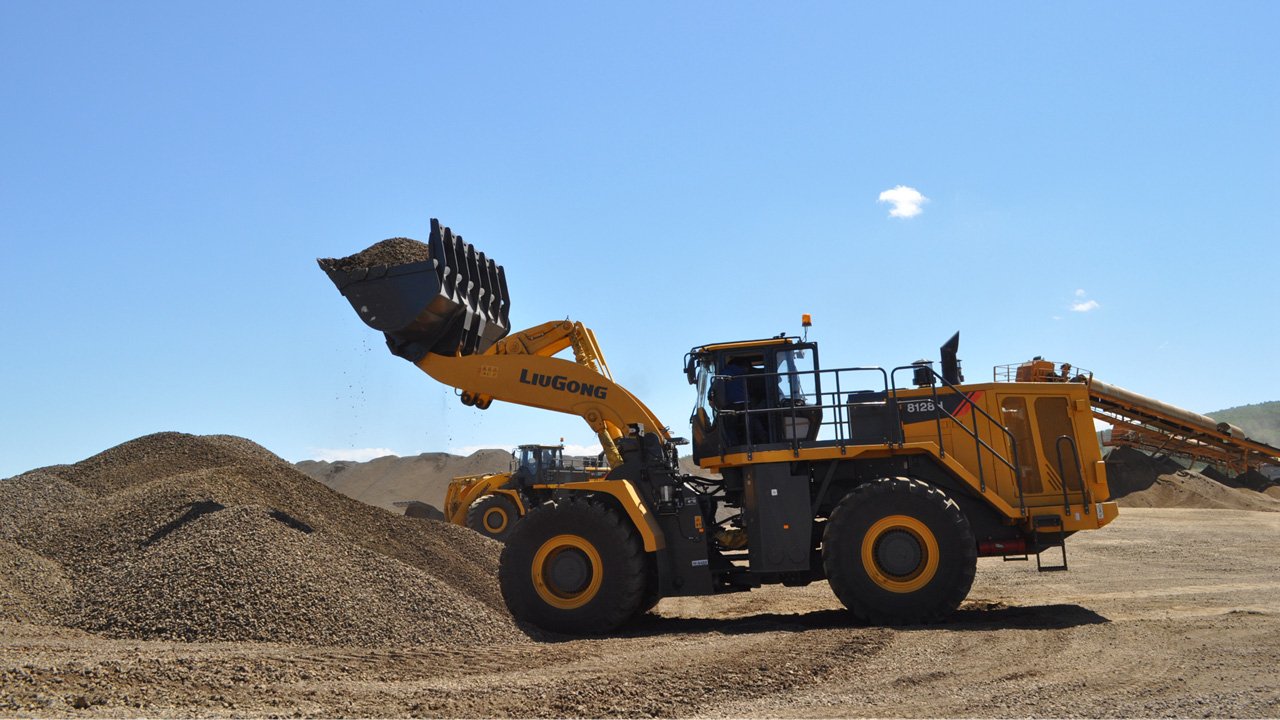

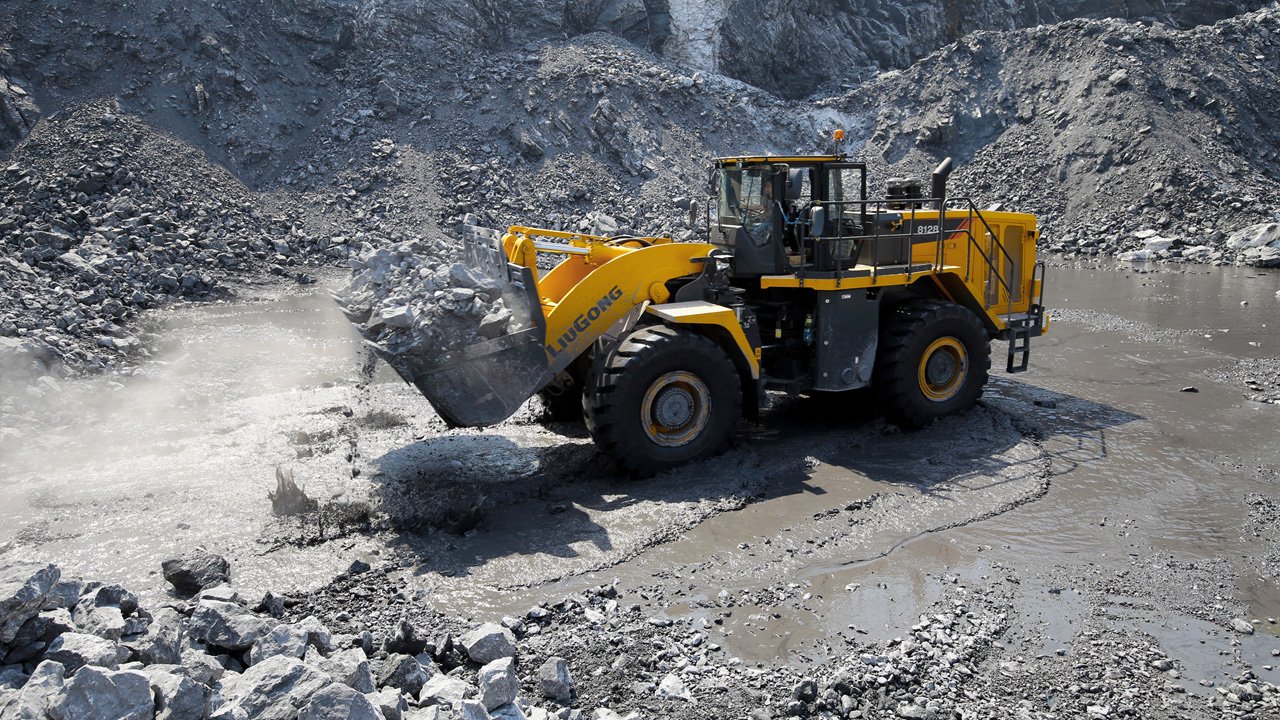

GALLERY
