835H
FEATURES

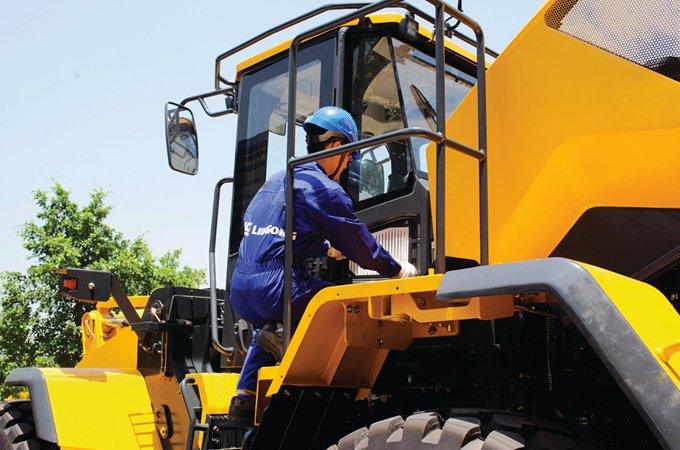

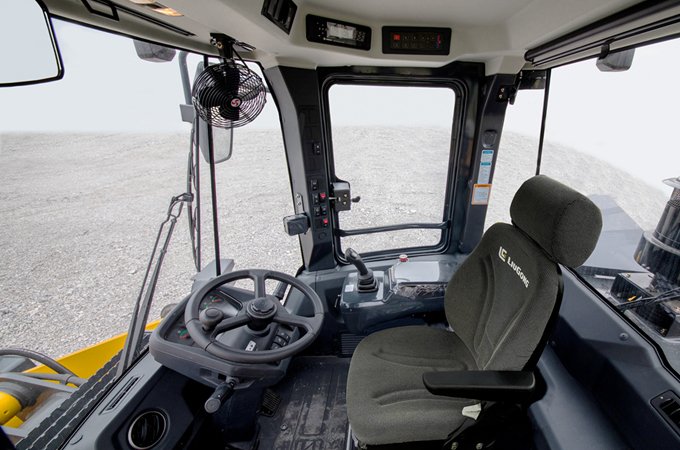

PUTTING THE OPERATOR FIRST
Comfort and safety are key operator demands and the 835H delivers without compromise. We’ve made it safer and easier to get in and out of the cab with 360-degree surround handrails and anti-slip steps. Inside, our comfortable ergonomic cab is fully pressurised to create a quiet, dust free environment and has a multi-adjustable arm rest, joystick, and air-suspension seat for the ultimate in comfort
SUPERIOR VISIBILITY
We’ve made it easier to operate safely and efficiency with even greater visibility. Our curved, panoramic glass windows and optional rear-view camera combine to increase visibility by 15%
SPEEDY MAINTENANCE
Maintenance and checks should be fast and easy to perform, that’s why we’ve created easy access service points. The wide opening engine hood reveals logically positioned service points designed to save you time and hassle. Radiator cleaning, oil checks and replenishment, hydraulic hoses, air, diesel, and oil filters can all be reached quickly and easily reducing downtime
SPECIFICATIONS
Base
| Operating Weight | 10,375 kg |
| Bucket Capacity | 1.8 m³ |
| Gross Power | 97 kW (130 hp / 132 ps) @ 2,200 rpm |
| Net Power | 89 kW (119 hp / 121 ps) @ 2,200 rpm |
| Rated Load | 3,000 kg |
Dimensions
| Length with Bucket Down | 7,205 mm |
| Width over Tires | 2,295 mm |
| Cab Height | 3,340 mm |
Engine
| Model | Cummins 6BTAA5.9-C130 |
| Emissions | EPA Tier 2 / EU Stage II |
Performance
| Total Cycle Time | 9.3 s |
| Tipping Load-full Turn | 6,502 kg |
| Bucket Breakout Force | 86 kN |
| Dump Clearance, Full Height Discharge | 2,803 mm |
| Dump Reach, Full Height Discharge | 1,042 mm |
GALLERY
