838T
FEATURES
FINGER-TIP CONTROL

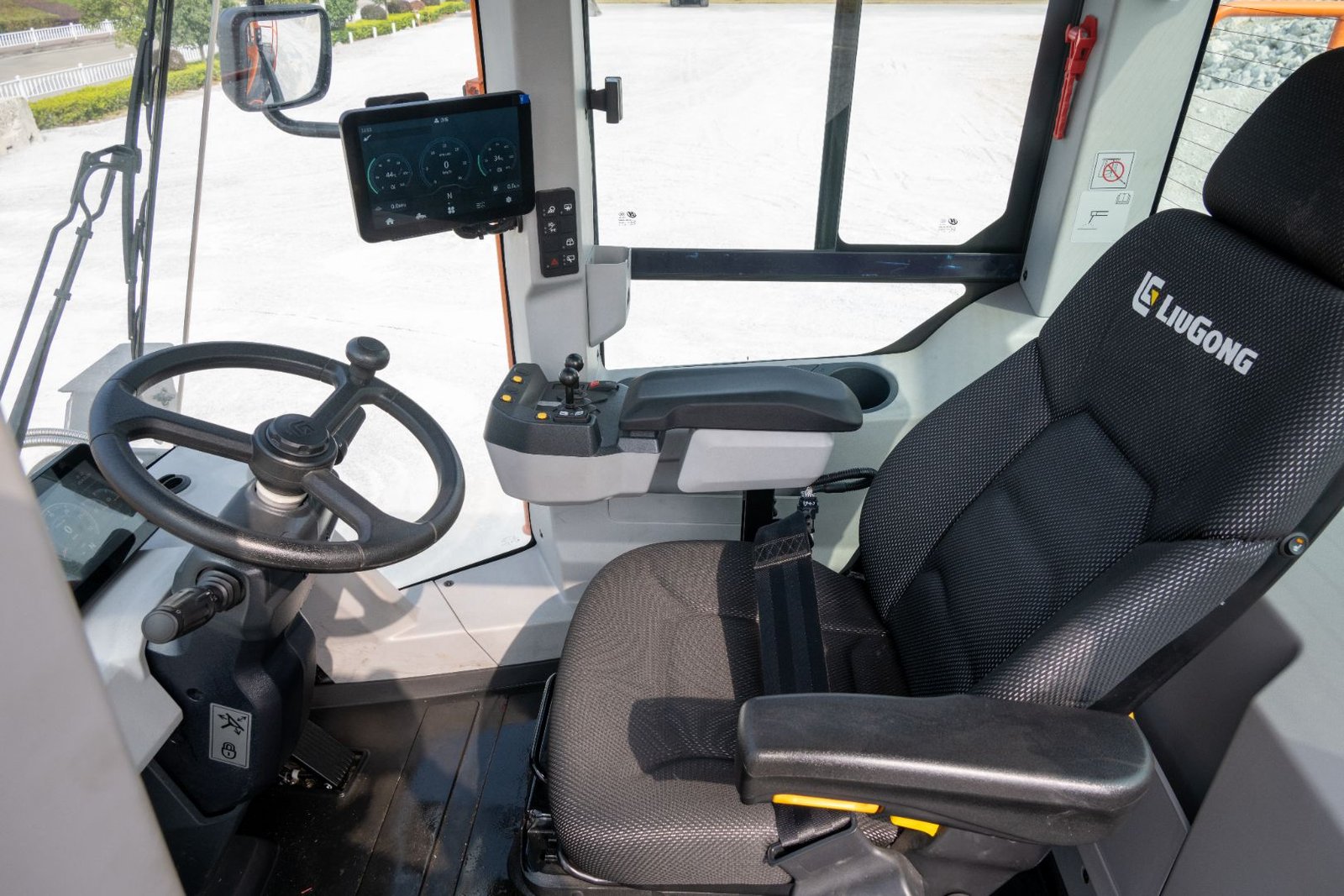

We want you to work smarter, not harder which is why we’ve made it easy to get the job done right in the 838T. We’ve positioned the kickdown and forward/reverse buttons on the joystick to give the operator fingertip control to lower the gears, increase engine torque and maximise the bucket breakout force with the minimum effort.
INTELLIGENT COOLING FOR GREATER ECONOMY

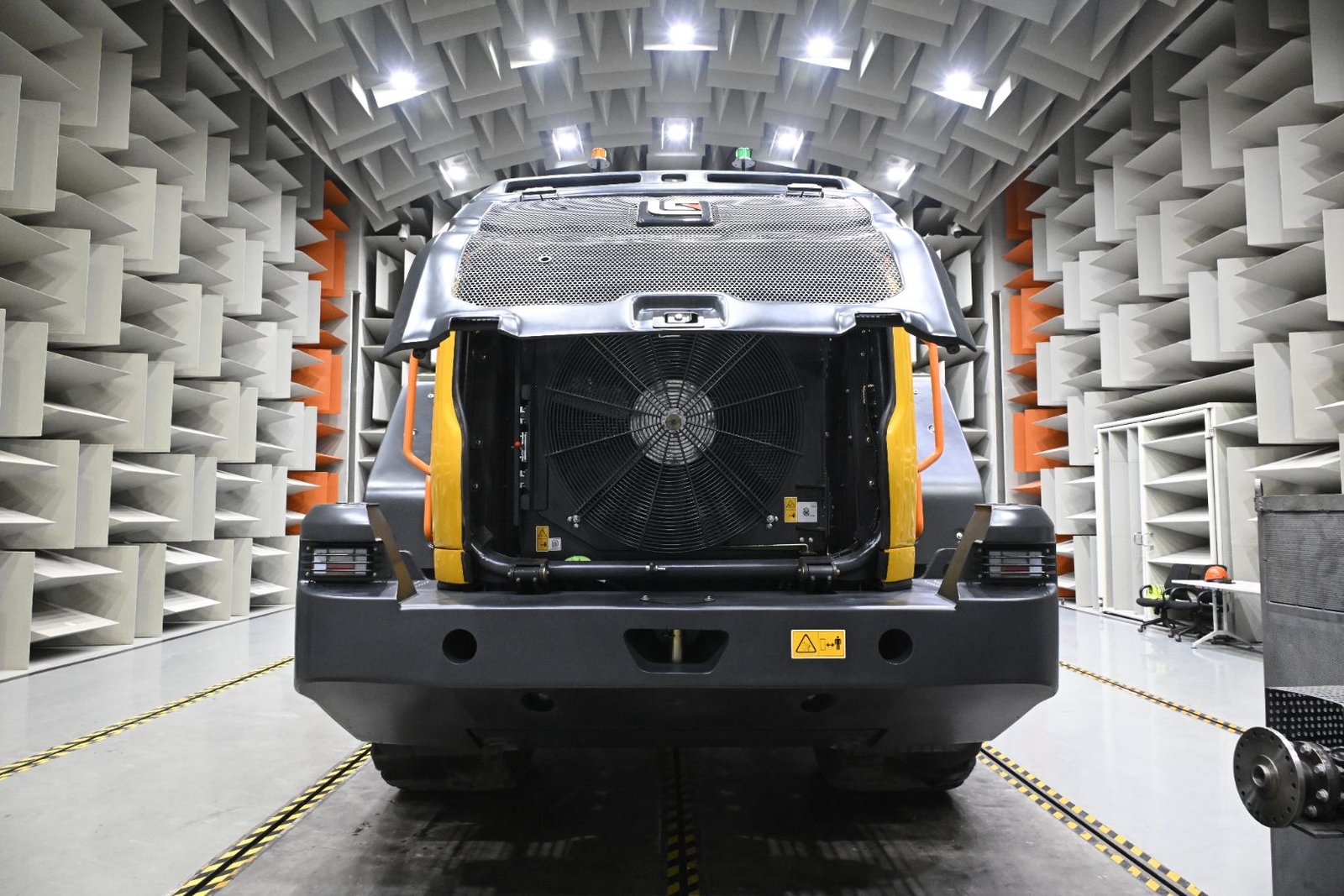

The 838T comes complete with a smart, reversible hydraulic fan which maintains the optimum cooling speed to match the working conditions. This variable speed technology is a smart way to reduce fuel consumption. In addition, the clever design makes it easy to remove dirt and contaminants reducing maintenance and downtime.
RELIABILITY YOU CAN TRUST
In tough conditions you need to have confidence in the reliability and durability of your machine. Our heavy-duty wet type brake axel and braking system won’t let you down. No matter how tough the terrain, our proven axel and braking technology is there to give operators the extra confidence to get the job done.
SPECIFICATIONS
Base
| Operating Weight | 13,378 kg |
| Bucket Capacity | 1.9 m³ |
| Gross power | 115 kW (154 hp / 156 ps) @ 2,200 rpm |
| Rated load capacity | 7,487 kg |
Dimensions
| Length with Bucket Down | 7,404 mm |
| Width over Tires | 2,420 mm |
| Cab Height | 3,352 mm |
Engine
| Model | Cummins B4.5 |
| Emissions | EU Stage V |
| Aspiration | Turbocharged & Air-to-air intercooled |
Performance
| Hydraulic cycle time | 9.8 s |
| Raise Time | 4.8 s |
| Bucket Breakout Force | 113 kN |
| Dump Clearance, full height discharge | 2,804 mm |
| Dump Reach, Full Height Discharge | 1,154 mm |
