870HE
FEATURES
World-leading, high-performance
World-leading, high-performance lithium iron phosphate battery;Electric transmission improves transmission efficiency, reduces noise for smooth shifting and operative comfort
Fully electric fixed & variable hydraulics
Fully electric fixed & variable hydraulics deliver better efficiency and reduce energy consumption
Intelligent energy recovery system
Intelligent energy recovery system re-charges the battery to minimize energy consumption
Temperature-controlled electric
Temperature-controlled electric fan has independent control for better energy efficiency;IP67-rated wiring harness, integrated battery is safe and reliable.
SPECIFICATIONS
Base
| Operating Weight | 24,200 kg |
| Rated Storage Energy | 427 kWh |
| Bucket Capacity | 4.7 m³ |
| Rated Load Capacity | 7,500 kg |
| Fastest Total Cycle Time | 9.5 s |
| Bucket Breakout Force | 220 kN |
| Tipping load-full turn | 16,800 kg |
| Tipping Load - Straight | 18,900 kg |
| Shipping Dimension L x W x H | 8957 x 3050 x 3550 mm |
| Standard Dump Clearancet | 3,100 mm |

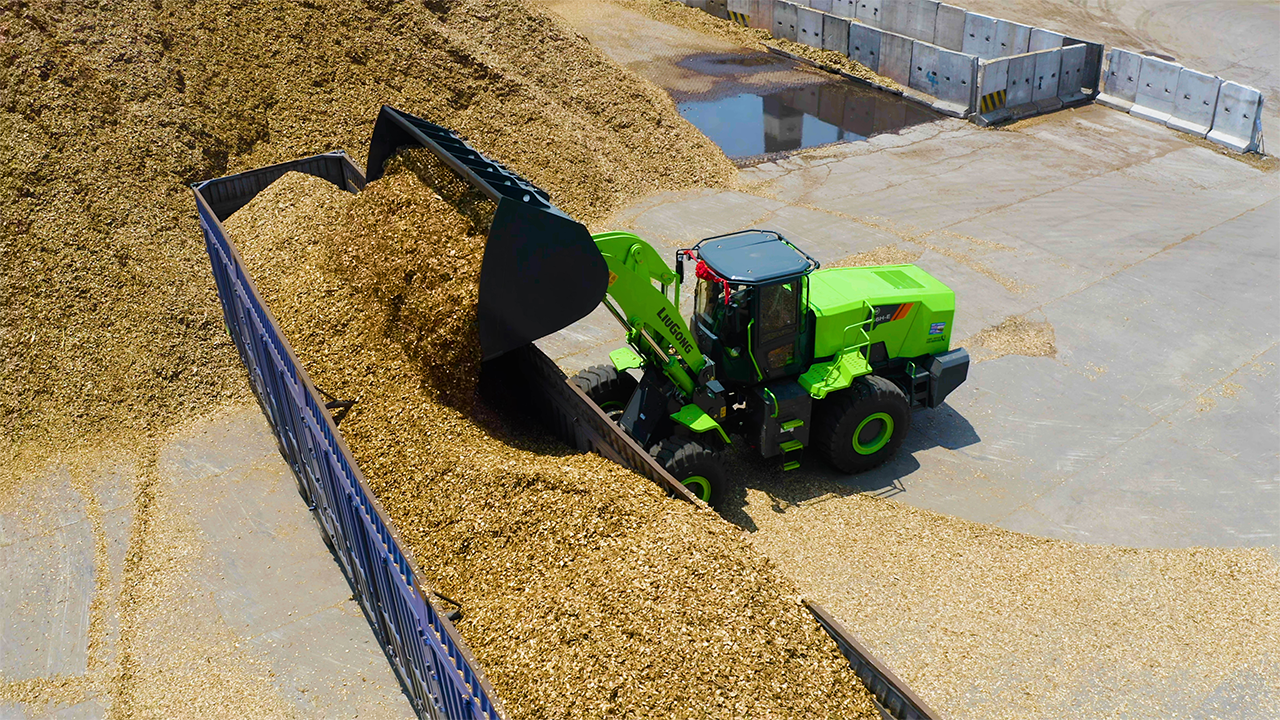

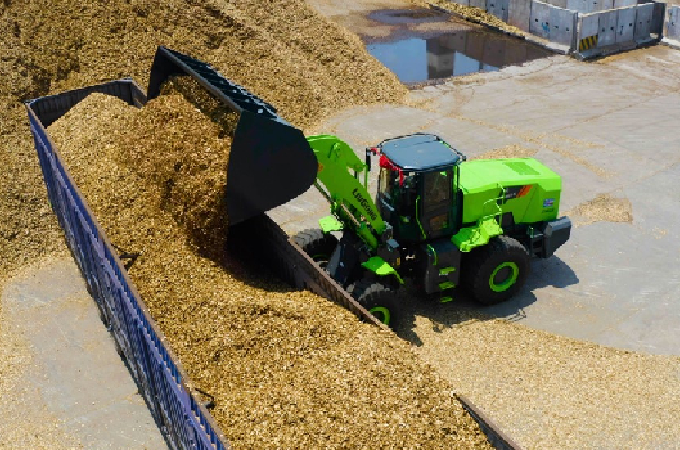

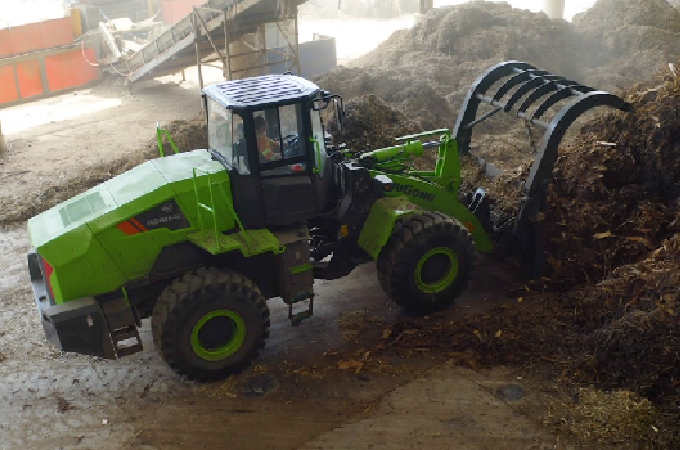

GALLERY
