890T
FEATURES

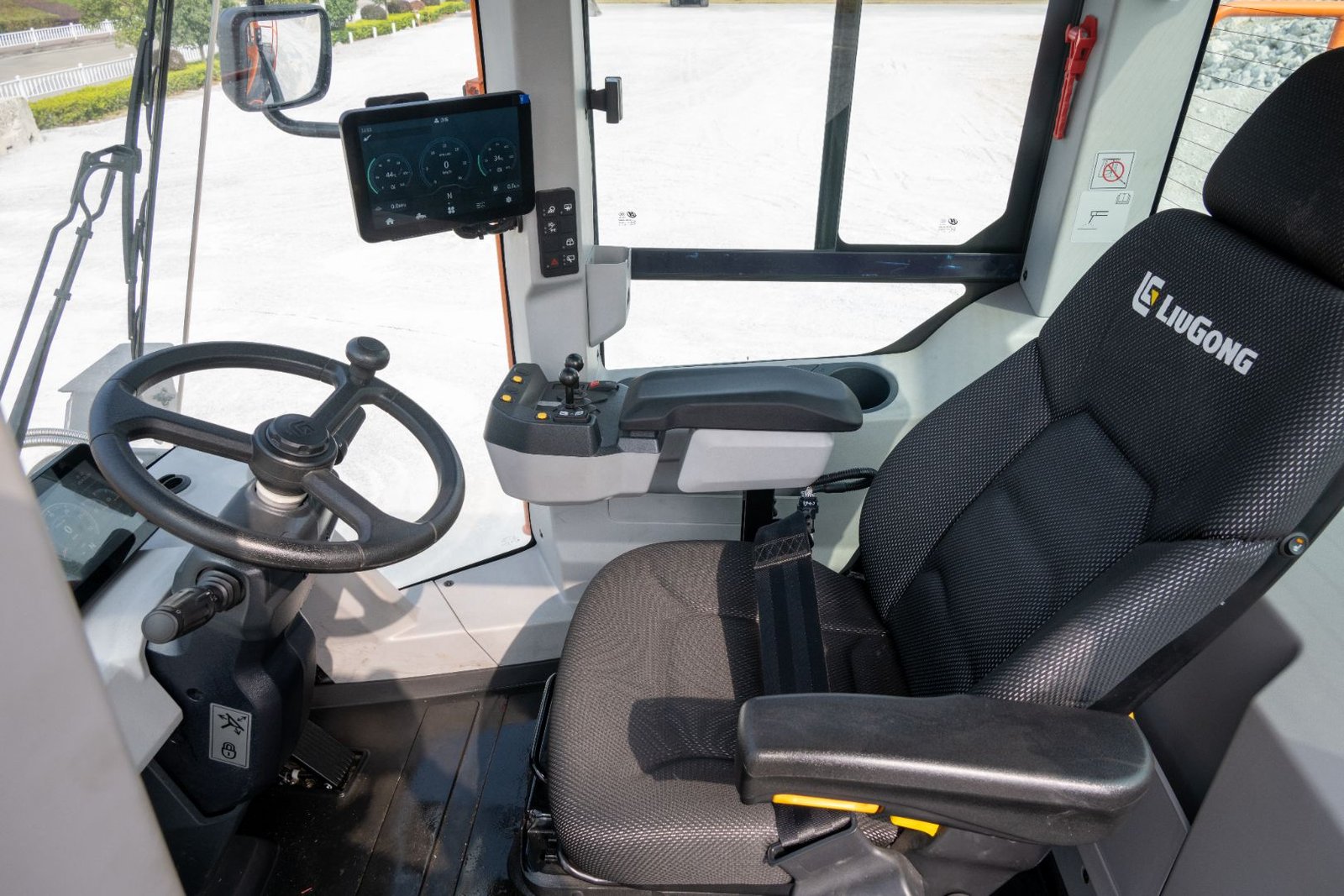

FINGER-TIP CONTROL
We want you to work smarter, not harder which is why we’ve made it easy to get the job done right in the 890T. We’ve positioned the kickdown and forward/reverse buttons on the joystick to give the operator fingertip control to lower the gears, increase engine torque and maximise the bucket breakout force with the minimum effort.

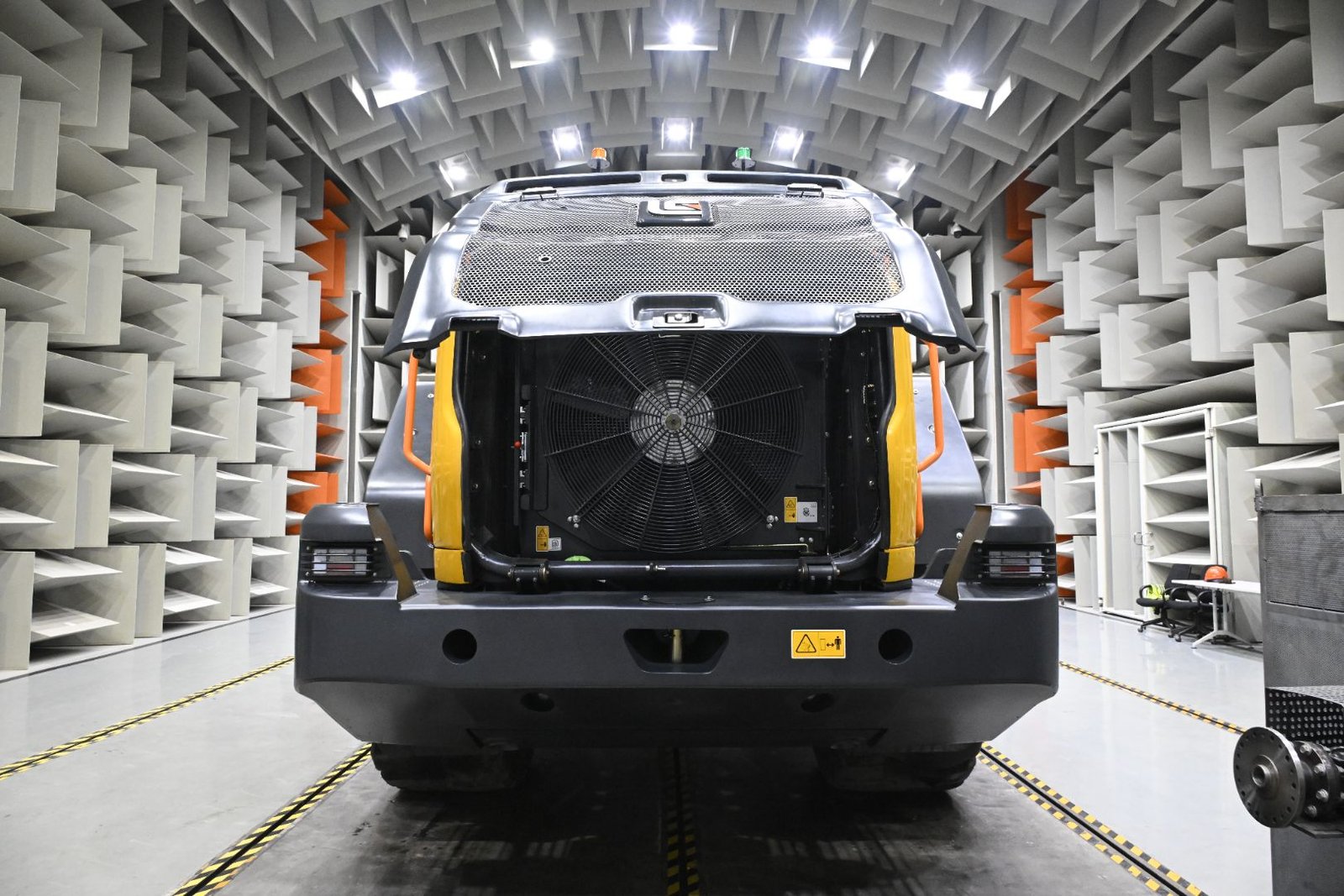

INTELLIGENT COOLING FOR GREATER ECONOMY
The 890T comes complete with a smart, reversible hydraulic fan which maintains the optimum cooling speed to match the working conditions. This variable speed technology is a smart way to reduce fuel consumption. In addition, the clever design makes it easy to remove dirt and contaminants reducing maintenance and downtime.
RELIABILITY YOU CAN TRUST
In tough conditions you need to have confidence in the reliability and durability of your machine. Our heavy-duty wet type brake axel and braking system won’t let you down. No matter how tough the terrain, our proven axel and braking technology is there to give operators the extra confidence to get the job done.
SPECIFICATIONS
Base
| Operating Weight | 33,950 kg |
| Bucket Capacity | 9.0 m³ |
| Gross power | 287 kW @ 1,800 rpm |
| Rated load capacity | 9,500 kg |
Dimensions
| Length with Bucket Down | 10,033 mm |
| Width over Tires | 3,170 mm |
| Cab Height | 3,790 mm |
Engine
| Model | Cummins X12 |
| Emissions | Stage III |
| Aspiration | Turbocharged & Air-to-air intercooled |
Performance
| Hydraulic cycle time | 11 s |
| Tipping Load-Full turn | 19,216 kg |
| Bucket Breakout Force | 270 kN |
| Dump Clearance, full height discharge | 3,645 mm |
| Dump Reach, Full Height Discharge | 1,433 mm |
