920F
FEATURES
THE POWER TO MOVE MORE

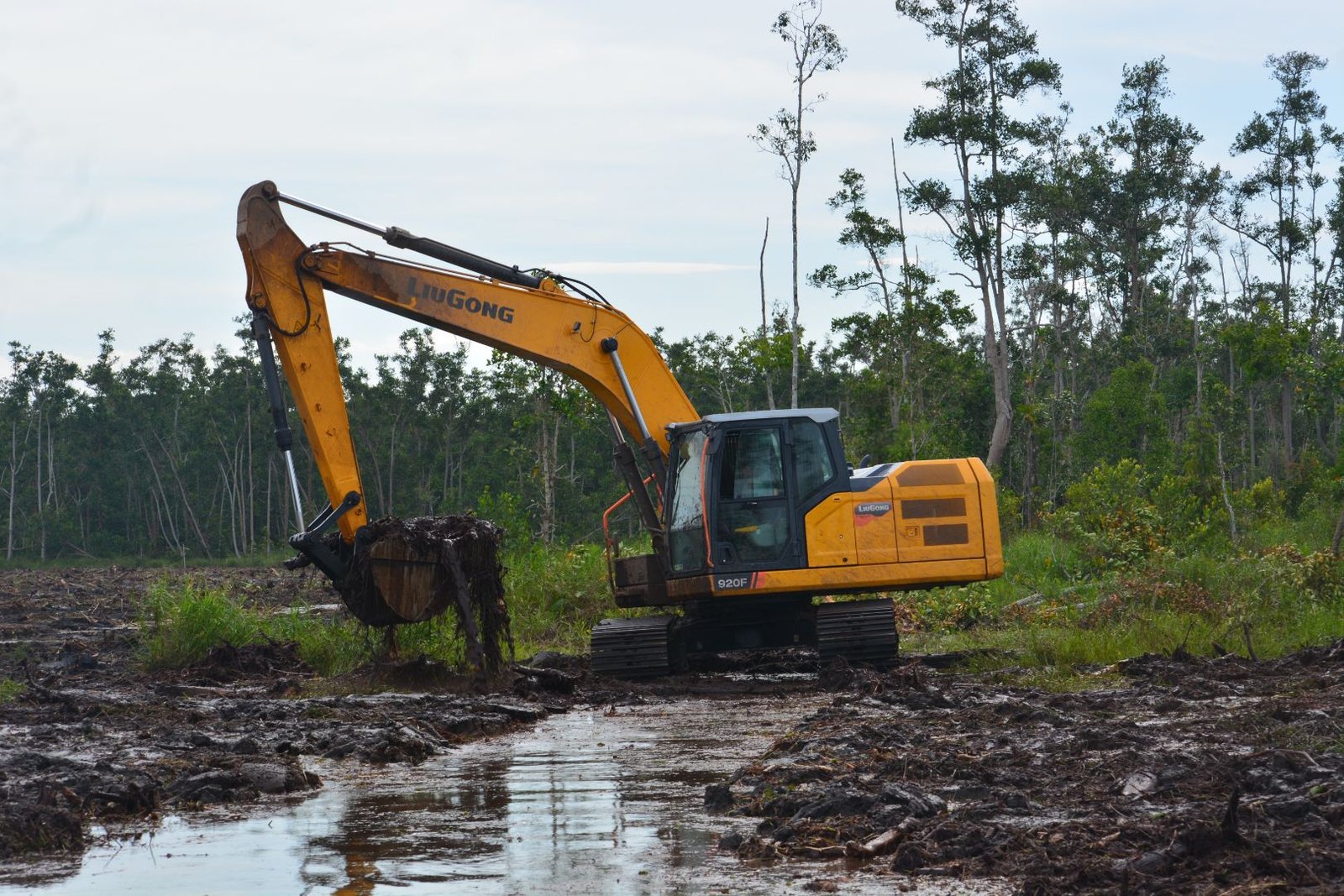

Powered by a super-efficient, high power output, low emissions Cummins engine and benefiting from advanced hydraulics the 920F delivers impressive digging performance no matter how tough the terrain. Loading cycle times are faster too thanks to the combination of faster swing speed, perfectly matched arm and bucket.
EASY ON THE OPERATOR

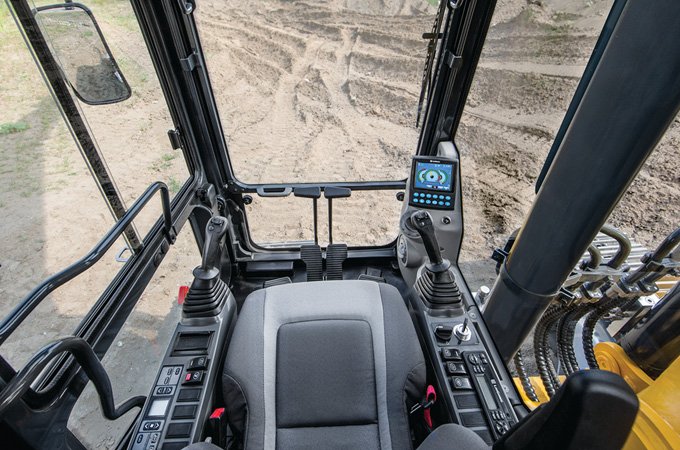

Tough, repetitive tasks like breaking and lifting can lead to operator fatigue and reduced productivity. We keep the operator fresh and alert with a light, responsive hydraulic control joystick. This smart technology ensures that the operator moves the maximum amount of material with the minimum of effort.
SPECIFICATIONS
Base
| Operating Weight | 21,500 kg |
| Rated Power | 112 kW (150 hp / 152 ps) @1,950 rpm |
| Bucket Capacity | 1.0 m³ |
Engine
| Model | 6BTAA5.9-C150-II |
| Emission | EU Stage II |
Hydraulic System
| System Maximum Flow | 2×224 L/min |
| System Pressure | 37.3 MPa |
Performance
| Arm Digging Force | 105 kN |
| Bucket Digging Force | 152.5 kN |
Transport Dimension
| Shipping Length | 9,540 mm |
| Shipping Width | 3,000 mm |
| Shipping Height | 3,140 mm |
| Track Shoe Width (STD) | 800 mm |
