908F
FEATURES

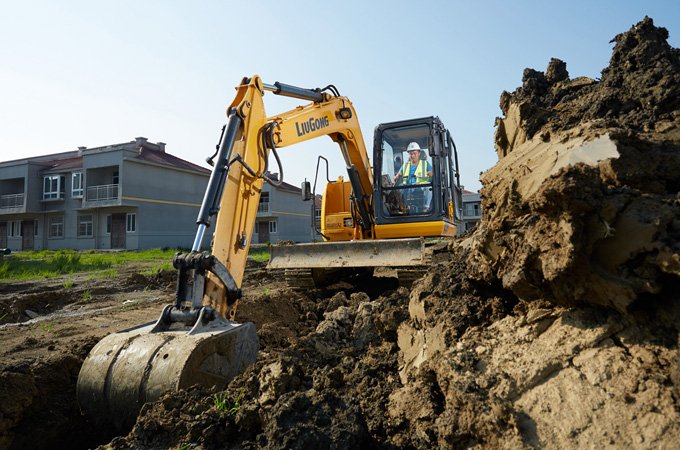

UNMATCHED PERFORMANCE
When you need maximum performance from the minimum of fuel the 908F makes it easy. Powered by an environmentally efficient Yanmar engine, we’ve made it simple to maximize torque output and achieve higher breakout force at lower engine speeds. Add to this our load sensing hydraulics and auto idle technology and the 908F offers a smart, environmentally friendly solution.
REAL-TIME INFORMATION

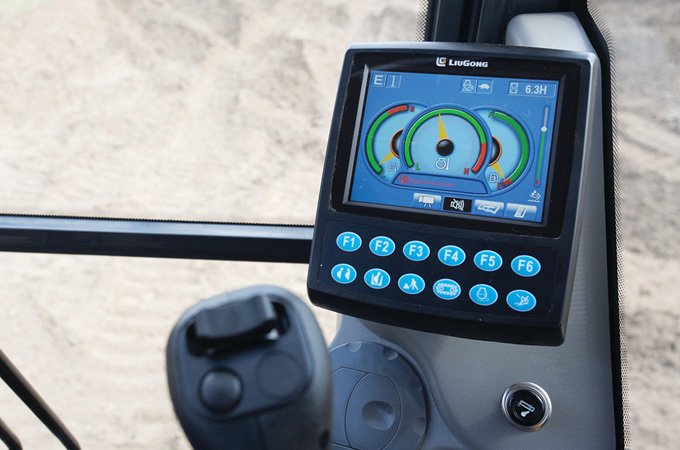

Our ergonomically designed cab with its attractive and intuitive Instrument panel makes it easy for you to operate and control the machine to get the maximum performance. The large, full color LCD monitor gives you real-time information to help you operate more effectively. Working hours, fuel and oil levels, water temperature, work modes, fault diagnostics and alarms, in fact, all the information you need is instantly visible on screen.

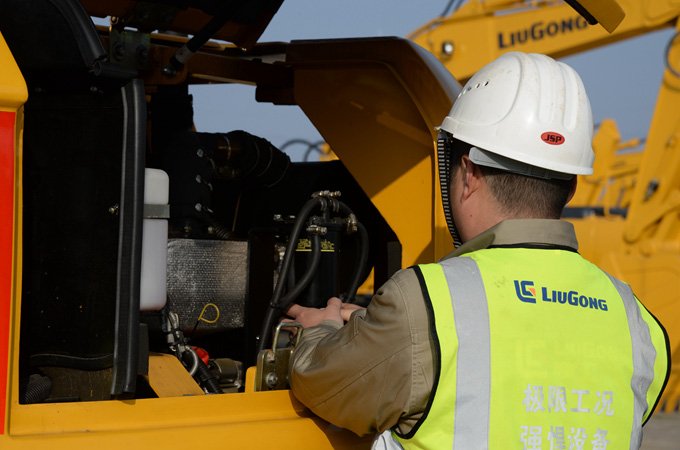

COMPONENTS YOU CAN TRUST
We only use top quality components which have proven quality, durability and deliver the highest uptime and service life. Our components have high availability, so securing replacement parts is quick and easy making the 908F easy to own, operate and maintain.
SPECIFICATIONS
Base
| Operating Weight | 7,500 kg |
| Rated Power | 46.3 kW (62 hp / 63 ps) @ 2,200 rpm |
| Bucket Capacity | 0.32 m³ |
Engine
| Model | Yanmar 4TNV98 |
| Emission | EU Stage IIIA |
Hydraulic System
| System Maximum Flow | 156 L/min |
| System Pressure | 31 MPa |
Performance
| Arm Digging Force | 39 kN |
| Bucket Digging Force | 58 kN |
Transport Dimension
| Shipping Length | 6,100 mm |
| Shipping Width | 2,260 mm |
| Shipping Height | 2,700 mm |
| Track Shoe Width (STD) | 450 mm |
