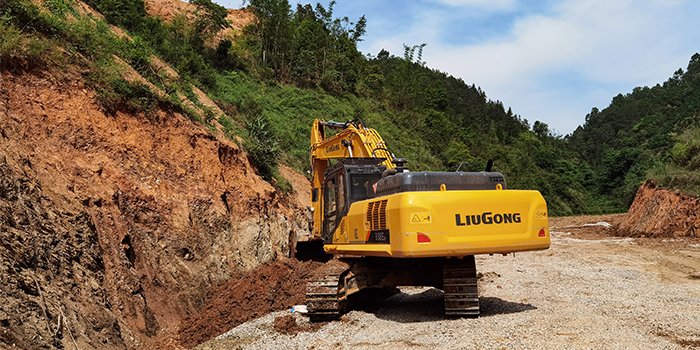

938EHD

FEATURES

Enhanced Protection and Reliable Filtration System

This unit comes standard with a full protection track guard, designed to prevent damage from stones to the supporting rollers and track chains. This feature improves adaptability to harsh ground conditions while ensuring greater durability and reliability in demanding environments. Additionally, all three fuel filter elements utilize advanced nano filtration technology, delivering superior filtering performance. This effectively protects engine injectors and other critical components, enhancing overall reliability even when operating with lower-quality diesel fuel.

SPECIFICATIONS

Base

Operating Weight 38,400 kg
Rated Power 214 kW @ 2100 rpm
Bucket Capacity 1.9 m³
Engine Model Cummins L9PLUS
Emission Standard EU Stage IIIA

Performance

Arm breakout force 227 kN
Bucket breakout force 290 kN

Transport Dimension

Shipping length 11,350 mm
Shipping width 3,190 mm
Shipping height 3,800 mm
Track shoe width (std) 600 mm
System maximum flow 2 × 351 L/min
System pressure 34.3 MPa
