952F
FEATURES
CLASS-LEADING DIGGING FORCE
For class leading digging force, we’ve teamed up a super-efficient Cummins QSM11 engine with LiuGong’s advanced hydraulics technology to deliver the hydraulic pressure where you need it most. Add to this our perfectly matched arm and specialized rock bucket and you have the perfect combination of power, control and efficiency to break more material – faster.
FASTER CYCLE TIMES
Our advanced hydraulics deliver even faster swing speeds allowing you to enjoy faster cycle times. With the lowest cost per tonne an important industry driver we offer you the most efficient solution helping you load more material in less time.

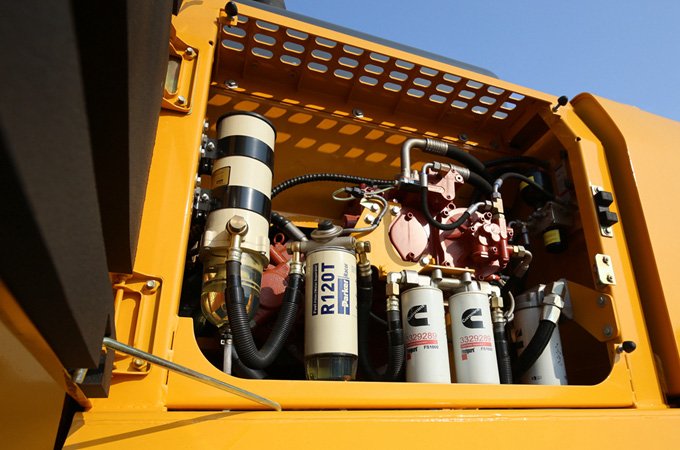

EASY ACCESS MAINTENANCE
Small design details can really save you time and ultimately save you money, here’s a great example. To make your daily maintenance checks faster and easier we’ve grouped together the key filters including, the primary, secondary and tertiary level fuel pre-filters, the fuel pump, pilot filter and engine oil filter. These filters are all conveniently positioned in the pump compartment. This small but significant design detail will save both operators and technicians valuable time and lead to higher uptime.
PROACTIVE MONITORING
The 952F benefits from LiuGong’s on-board monitoring system which gives the operator real-time information about the machine. If fluid levels become low or a fault develops for example or if routine maintenance is required, a clear warning is displayed on the LCD screen allowing he operator to take the appropriate action.
SPECIFICATIONS
Base
| Operating Weight | 51,000 kg |
| Rated Power | 298 kW @ 2000 rpm |
| Bucket Capacity | 2.6-3.2 m³ |
Engine
| Model | Cummins X12 |
| Emission | EPA Tier 4F/ EU Stage V |
Hydraulic System
| System Maximum Flow | 760 L/min |
| System Pressure | 34.3 MPa |
Performance
| Arm breakout force | 265 kN |
| Bucket breakout force. | 280 kN |
Transport Dimension
| Shipping Length | 11,960 mm |
| Shipping Height | 3,735 mm |
